Iberê Camargo Museum / Álvaro Siza

Posted in Architecture - Museums by * FORMAKERS | Tags: Alvaro Siza, Brasil

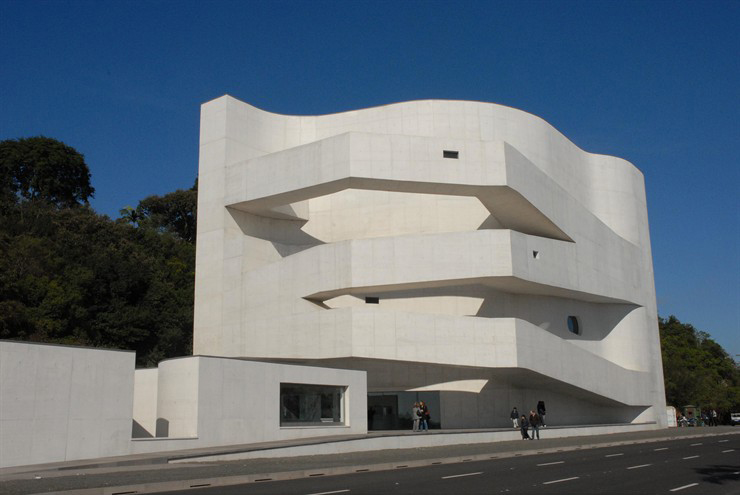

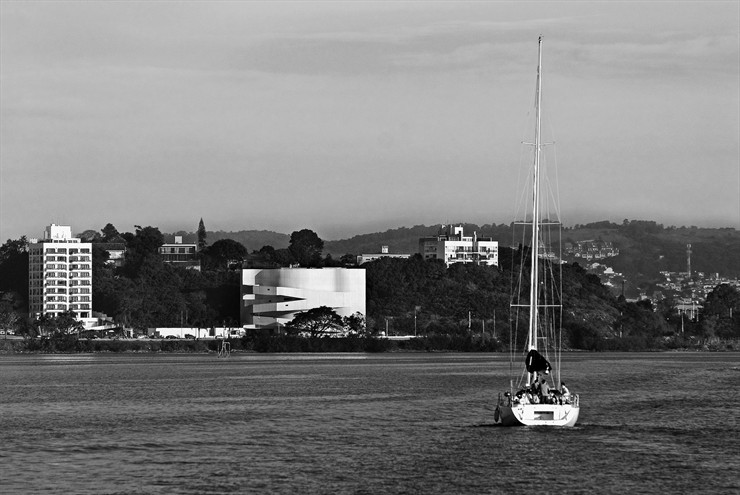

Settled into the lush green hillside like a giant sculpture, the first building in Brazil by Álvaro Siza preserves the collection of more than 4000 works by Iberê Camargo, the master of Brazilian expressionism. The base of the building is a long platform, 0.

© Mathias Cramer
90 meters above street level, under which part of the program areas are located. The main building volume cuts through the escarpment.

© Fundação Iberê Camargo

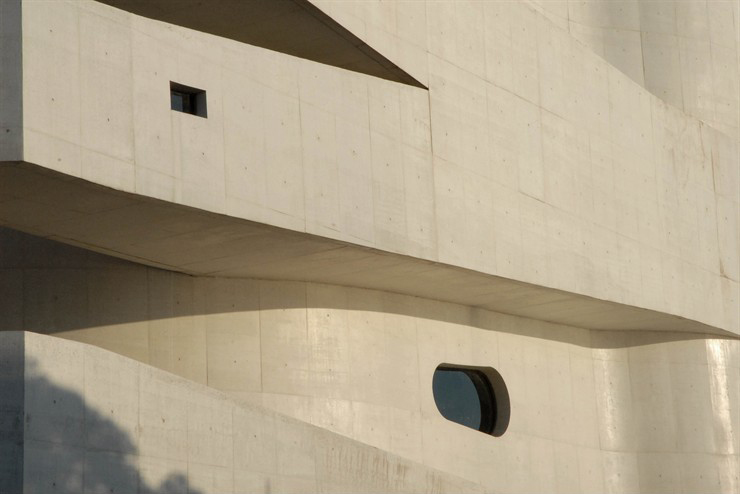

Siza chose white concrete as the main construction material as a means to establish a dialogue with modern Brazilian architecture. "Concrete allows for great flexibility in the organization of volumes and shapes.

© Mathias Cramer
In Brazil there is an important tradition of concrete utilization. Modern Brazilian architecture is so rich and varied, and it pushes its own limits when using this material, that it would make no sense to use anything else instead.

© Mathias Cramer

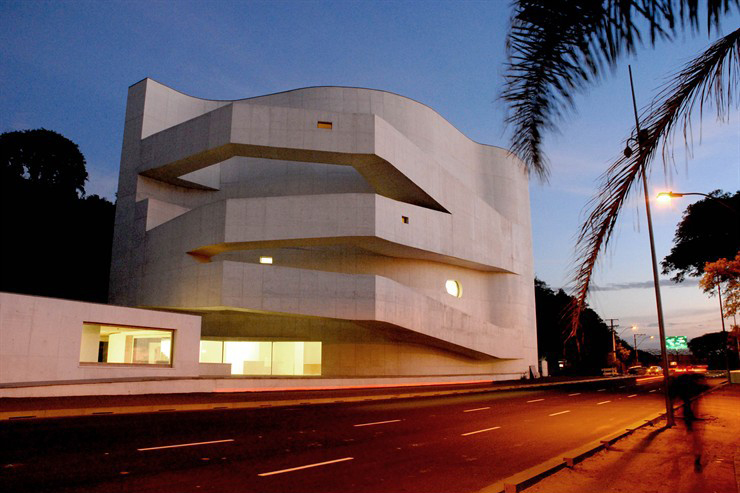

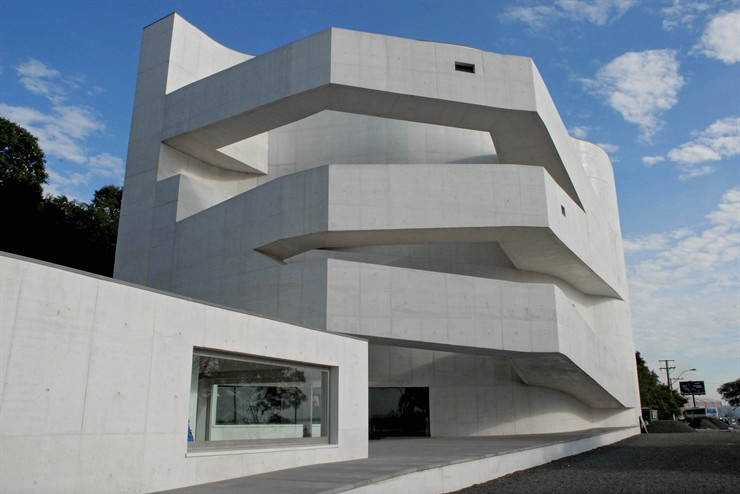

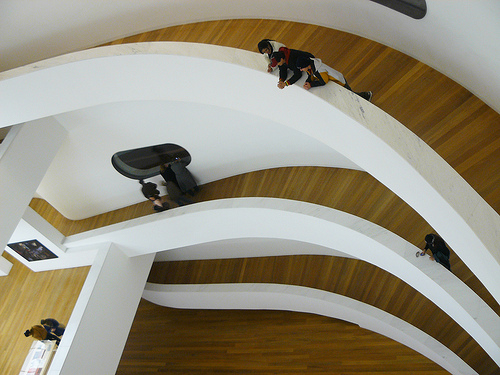

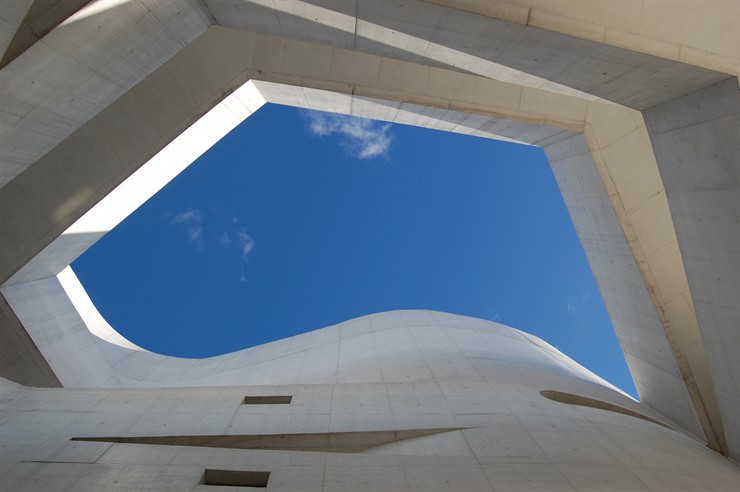

" Álvaro Siza You enter the museum under the concrete ramps that define the vertical space, open to the sky, in front of the museum. The nine galleries and circulation ramps surround a towering central atrium, with the ramps extending to the exterior as enclosed walkways cantilevered across the front facade.

© Mathias Cramer
Vertical circulation, two elevators and two sets of stairs, are located at each end of the building. The print shop, artists’ studios and a café are located in low buildings along the sidewalk.

© Mathias Cramer

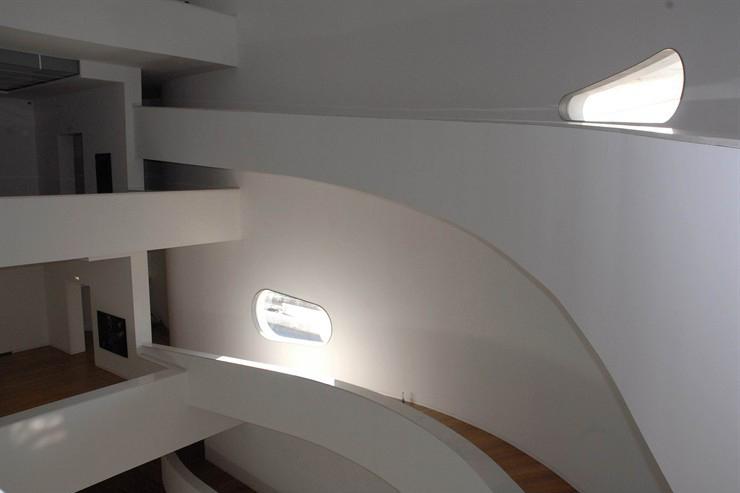

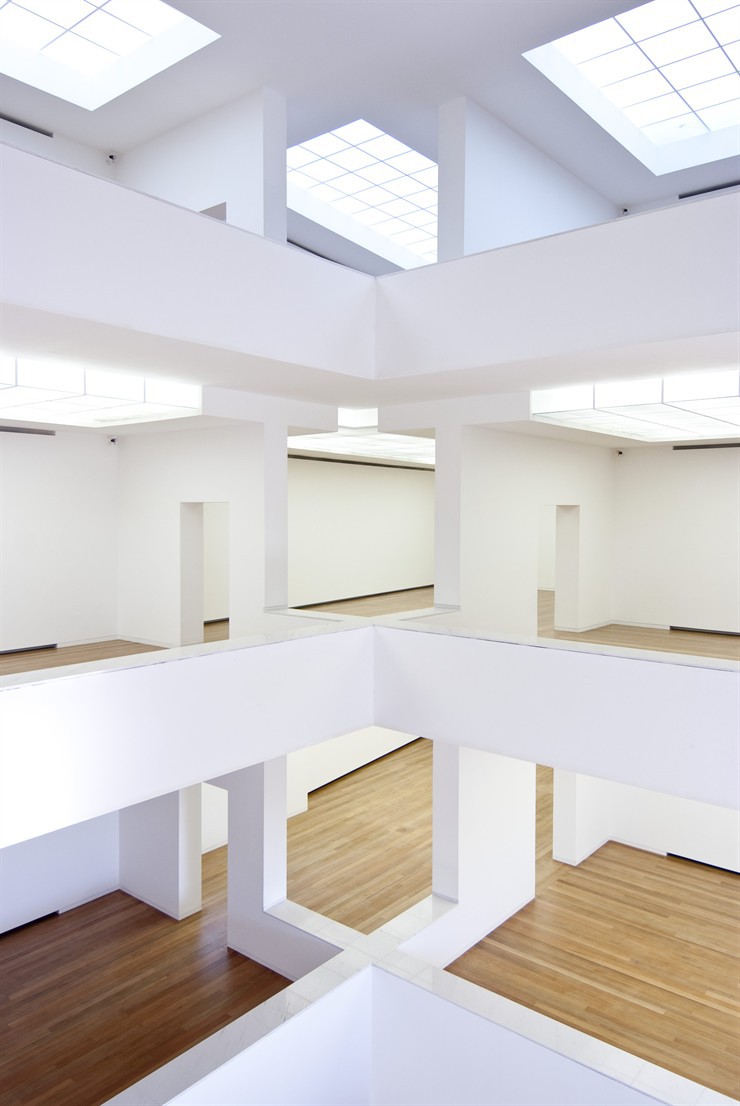

Natural light enters the central atrium space through skylights or openings in the curved walls. The galleries are open to the atrium, or enclosed by four meter tall removable panels that allows for light to enter between them and the ceiling.

© Mathias Cramer

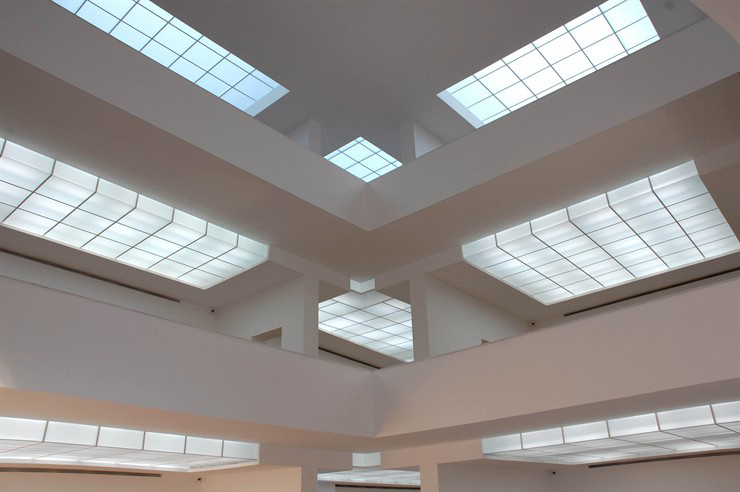

The galleries on the top floor receive natural light, supplemented by artificial lighting, through double glazed skylights. Single windows along the ramps frame views of the Guaíba River and Porto Alegre's downtown skyline.

© Fundação Iberê Camargo
The building is environmentally responsible, aiming to restore the original landscape on the banks of the site (12,000 square meters of green space formally donated to the Foundation by the Municipal Environment Secretariat). It has low energy consumption using a small effluent-treatment station for on-site liquid and solid waste treatment.

© Mathias Cramer
The water produced from this process is used for watering the vegetation. The hillside includes a nature trail with identification of native species to be opened to the public in partnership with the Gaia Foundation.

© Mathias Cramer

© Mathias Cramer © Fundação Iberê Camargo © Mathias Cramer © Mathias Cramer © Mathias Cramer © Mathias Cramer © Mathias Cramer © Fundação Iberê Camargo © Mathias Cramer © Mathias Cramer
